Description

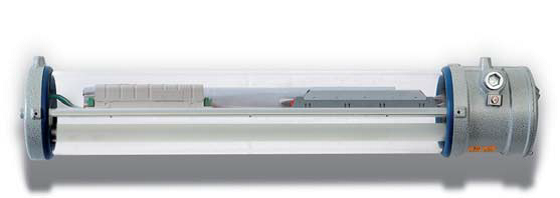

Lighting fixture for fluorescent tubesand LED tubes

FLF…

• Ex protection: Ex II 2GD Ex d IIC T6 – Ex tD A21 IP 66
• Certificate: CESI 09 ATEX 008
• Installation: zone 1 – 2 – 21 – 22

CONSTRUCTION

• Aluminum alloy heads with low copper content.
• Standard power supply 230V 50/60Hz.
• Shockproof and temperature-resistant borosilicate glass tube.
• White aluminum internal frame that works as diffusing reflector also.
• Neoprene gaskets resistant to acids and hydrocarbons.
• Silicon resin between glass tube and aluminum heads.
• 4 Ah or 7Ah, 6V rechargeable batteries.
• RAL 7035 epoxy coating.
• Stainless steel screws.
